The Best Channel Strip Controller
for Cubase, Logic Pro & Nuendo

Panorama CS12 is designed to work with Nektar DAW integration for Logic Pro and Steinberg’s Cubase & Nuendo. When used with a compatible DAW, Panorama CS12 gives hands-on control of the DAWs mixer, plugins, timeline navigation and more.

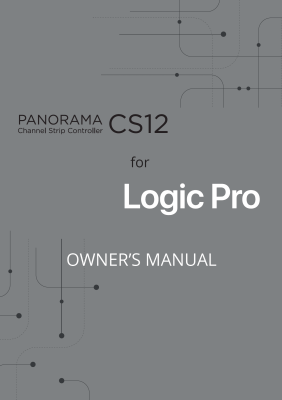

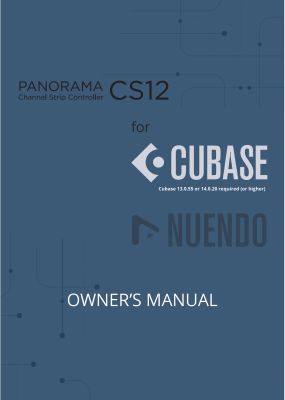

Learn about Panorama CS12 integration for:

blank
 Highlights:

  • Long-throw 100mm motorized fader .
  • Endless (360) potentiometer with RGB illumination.
  • 6-segment LED meter for real-time display of channel volume.
  • Dedicated buttons for channel Arm, Mute, Solo and Select parameter control.
  • Color TFT display used for plugin list display and control assignments. In the image an SSL EQ is controlled.
  • 3 display encoders. The tempo encoder can be assigned other functions such as vertical zoom or timeline control.
  • buttons below the display are used for parameter control or page selection.
  • 18 function buttons used as indicated with additional secondary functions accessible using Shift.
  • 11 RGB illuminated buttons for selection of plugin bank 9-16,  plugin slots 1-8, sends and channel menus.
  • 12 endless (360) potentiometers with RGB illumination for plugin and DAW control
  • 4 buttons RGB illuminated  parameter control buttons.

Panorama CS12: At Home in Your Studio

FEATURES & SPECIFICATONS

PANORAMA CS12

  • 1 100mm ALPS motorized fader.
  • 4 RGB LED control buttons.
  • 6 segment LED meter.
  • 3.5″ TFT color display.
  • 4 display buttons.
  • 4 channel strip LED buttons.
  • 18 Function and navigation LED buttons
  • 2 encoders for zoom and tempo.
  • 1 encoder with push button for Data/Menu
  • 13 endless or 360 potentiometers with RGB LED illumination.
  • 11 RGB LED buttons for selection of channel strip sections.
  • 1/4″ TRS Footswitch socket for basic handsfree DAW control.
  • Connect up to two foot switches using TRS to TS  Y-cable splitter.

SYSTEM REQUIREMENTS

    • USB class compliant, no driver needed.
    • Nektar ControlCore installation required. Unit doesn’t operate on its own.
    • A Nektar account for registration and download of support files.
    • USB Power Requirement: 500 mA minimum, connect to a USB high power port recommended.
    • MacOS: 11.5 or later.
    • Windows: 10 or later
    • Logic Pro: 10.7.8 or later.
    • Cubase: 13.0.51 / 14.0.10 or later

DIMENSIONS & WEIGHT

    • 39 cm (L) x 18,5 cm (D) x 6.5 cm (H), 0,49 kgs

IN THE BOX

    • Panorama CS12
    • Quickstart guide and functional overview. All other documentation is part of the download package.
    • USB A to C cable.
