IMPACT LX MINI: CREATE & PRODUCE. ANYWHERE.

Impact LX Mini makes the power of Nektar’s Impact LX range of USB MIDI controller keyboards truly portable. Enhance your workflow with a host of powerful real-time and intuitive control features that inspire your creativity: No menu-diving, tactile control, two arpeggiators, drum pads, mini-keys that are great to play – and of course Nektar DAW integration. LX Mini has everything you need to create!

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

THE FEATURES YOU NEED TO PLAY, PERFORM & PRODUCE

KEYS

LX Mini Keybed

Impact LX Mini features our newly developed keybed with 25 velocity-sensitive mini-keys. It can be played expressively and has a defined and firm feel. With a choice of 4 velocity curves and 3 fixed values, you can tailor the keyboard response to your playing style. Dedicated Octave buttons let you shift the octave swiftly for a wider reach. Additionally, the Part 2 buttons can be used for transpose.

JOYSTICK

LX Mini Joystick

The Joystick is 4 modulation controls in one: Left/right controls pitch bend, the upwards axis is preassigned to control modulation and the downwards axis is set to foot pedal control. The lever’s push button sends foot pedal at max. level. Up, Down and the push button are freely assignable to any MIDI CC# number. Settings are retained over power-cycling.

FOOTSWITCH

LX Mini Footswitch socket

LX Mini even has a footswitch socket for connecting a sustain pedal, a feature often missing on mini-keyboards. Connect any standard sustain pedal to the 1/8” mini socket (an adapter from 1/8” to 1/4″ is included). Polarity is detected automatically on boot-up, and it is freely MIDI CC#-assignable.

LX Mini Features Controls

TRANSPORT

LX Mini Transport Controls

Control any MIDI music software from LX Mini’s 7 Transport buttons. All buttons are MIDI-assignable, with the shift button doubling the number of assignments to 14. With Nektar DAW integration,  you even get a third control level for a total of up to 21 functions – all pre-mapped for instant use.

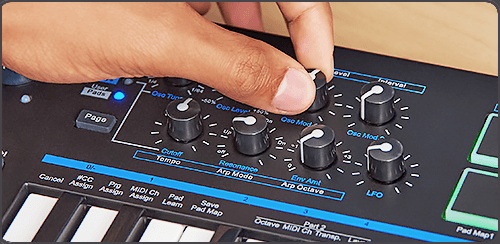

KNOBS

LX Mini Knobs

8 knobs give you instant access to arpeggio, instrument or MIDI CC# parameters. The Instrument, Internal and Arp/Repeat mode buttons instantly assign the panel to the corresponding features. The Page button doubles the number of assignments.

PADS

LX Mini Pads

Impact LX Mini helps you creating expressive grooves and beats with its 8 velocity-sensitive pads. They offer a hyper-sensitive and even response, ideal for finger-drumming. Assignments are done in seconds and can be stored in 4 pad maps for a total of 32 note assignments.


INSPIRING REAL-TIME TOOLS WITH INSTANT ACCESS

ARPEGGIATOR & NOTE REPEAT

Two independent Arp/Repeat engines (one for keys and one for pads) with instant parameter access will inspire exciting synth and percussion lines. Once selected and activated, the Arp/Repeat engine parameters are available on the 8 knobs: Rate, Swing, Accent Level, Interval, Tempo, Arp Modes and Arp Octave can be changed in real-time. The screen printing makes it easy to find the parameter you are looking for.

LX Mini Arpeggiator Control

The Page button switches between the Keys and Pads engine settings, and the buttons next to the pads allow to activate them independently. So it is really easy to have a hi hat or percussion figure going on the pads, while you have an arpeggio bass line figure assigned to the keys in double time – with immediate access to changing either. The tempo can be clocked internally or via MIDI.

LX Mini Arpeggiator Controls

DOUBLE UP: PART 2

Part 2 is a unique performance feature for momentary setup changes: While playing, press one of the dedicated “Part 2” buttons to momentarily shift the octave up or down, transpose, layer another octave on top, switch to another MIDI channel altogether – or any combination of these features.

LX Mini Part 2 Settings

The instant you let go of the buttons, Impact LX Mini reverts back to its original settings. What’s more, any note that was played prior to pressing “Part 2” will keep playing at the original settings – so you could play and hold some really low bass notes, while playing a solo over the top. You’d like to latch your setting? Simply press the second Part 2 button while still holding the first. Part 2 will help you play in new ways, not even possible on larger keyboards!

LX Mini Part2


CONTROL YOUR VIRTUAL INSTRUMENTS & DAW

NEKTAR DAW INTEGRATION:
GIVE YOUR MOUSE A BREAK!

Simply install the Nektar DAW Integration package for your DAW and start controlling essential tasks right from Impact LX Mini’s transport section. Improve your workflow with extended transport control including goto/set locators on the fly, navigate tracks & projects, launch windows or select patches without ever reaching for the mouse.

Nektar Daw integration currently supports Ableton Live, Bitwig, Cakewalk, Cubase, Digital Performer, FL Studio, GarageBand, Logic Pro X, Mixcraft, Nuendo, Reason, Reaper and Studio One. Also included is a template setup for Pro Tools.

Check out the function overview chart below to see how Impact LX Mini DAW integration works with your DAW.

LX Mini DAW Controls
Impact GX MINI Daw Support Logos
LX Mini Instrument Controls

TWEAK YOUR INSTRUMENTS

How about controlling your virtual instruments like a hardware synth? LX Mini has a dedicated Instrument Mode button, that switches the knobs to control instrument parameters in most DAWs. And we’ve added screen printing to make it easy to remember assignments: Osc Tune, Level, Mod 1, Mod 2, Cutoff, Resonance, Envelope Amount and LFO. Using the Page button, you can assign two parameters to each knob for a total of 16. The large volume knob controls the channel volume. You assign parameters with Nektar Grab: Simply hold “Shift”, move a software control, then move the hardware control – done! In most DAWs you can save your assignments into maps for later recall. If Nektar DAW integration isn’t active, you can use Instrument Mode for MIDI learn in your DAW.

FUNCTION BITWIG
Click
Rewind
Forward
Cycle/Loop
Stop •
Play
Record
Undo
S1 View Mixer
S2 View Device Chain
S3 Open Browser
Track -/+
Patch -/+
Goto L/R Locator
Set Locator L/R
Launcher Overdub
Arranger Overdub
FUNCTION CAKEWALK
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Mixer
S2 View Instrument
S3 N/A
Track -/+
Patch -/+ Selects previous/next instrument in rack
Goto L/R Locator
Set L/R Locator
- N/A
Record Arm
FUNCTION CUBASE & NUENDO
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Mixer
S2 View Instrument
S3 View Channel Strip
Track -/+
Patch -/+ (VST patches)
Goto L/R Locator
Set L/R Locator
 - -
 Arranger Overdub
FUNCTION DIGITAL PERFORMER
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo/Redo
S1 View Mixer
S2 View Instrument
S3 N/A
Track -/+
Patch -/+
Goto L/R Locator
Set L/R Locator
 - N/A
 Overdub
FUNCTION FL Studio
Click (Shift + Record)
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Mixer
S2 View Instrument
S3 N/A
Track -/+
Patch -/+ Selects previous/next channel
Goto L/R Locator N/A
Set L/R Locator N/A
 - N/A
 Playback slow/fast
 Close all unfocused windows
FUNCTION GARAGEBAND
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Library
S2 View Apple Loops
S3 View Smart Controls
Track -/+
Patch -/+
Goto L/R Locator Moves cycle loop back/forward
Set L/R Locator
 - N/A
- N/A
 Arpeggiator enable
FUNCTION ABLETON LIVE
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 Toggle Arrangement/Session View
S2 Toggle Clip/Device View
S3 Toggle Browser View on/off
Track -/+
Patch -/+ Browser up/down
Goto L/R Locator
Set L/R Locator
 Capture and Play
 Record Arm on/off
FUNCTION LOGIC PRO
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Mixer
S2 View Instrument
S3 View Smart Controls
Track -/+
Patch -/+ (Logic AU patches)
Goto L/R Locator
 Set L/R Locator
 - N/A
 Arpeggiator enable •
 Record Arm
FUNCTION REAPER
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo •
S1 View Mixer
S2 View Instrument
S3 View Channel Strip
Track -/+
Patch -/+ (Reaper user presets)
Goto L/R Locator
Set L/R Locator
- N/A
- N/A
Track Arm

Solo

FUNCTION REASON
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 Track Mute
S2 Track Solo
S3 Enable Track Automation
Track -/+
Patch -/+
Goto L/R Locator
Set L/R Locator
 - N/A
 Precount on/off •
 Record Quantize on/off •
FUNCTION STUDIO ONE
Click
Rewind
Forward
Cycle/Loop
Stop
Play
Record
Undo
S1 View Mixer
S2 View Instrument
S3 View Browser
Track -/+
Patch -/+
Goto L/R Locator
Set L/R Locator  •
 - N/A
 Precount •
 Input Quantize (IQ) on/off •

BITWIG STUDIO 8-TRACK INCLUDED

Bitwig 8-Track is included with your Nektar controller so you can start producing, performing, and designing sounds like a pro from day one. Bitwig 8-Track gives you access to over 50 software instruments and effects for use on up to 8 audio or MIDI project tracks, and you can use any 3rd party VST plug-ins you might own, too. The ‘Bitwig Essentials Package’, a highly versatile handpicked selection of loops, clips and samples, is also included to help you get started. So put all that together and you have a powerful sketchpad for your musical ideas featuring the acclaimed workflow of Bitwig Studio.

Nektar DAW Integration supports Bitwig 8-Track, so using Nektar Impact LX+ and Bitwig 8-Track together is a fantastic combination. If you are just starting out, you will find it’s the perfect way to take your first steps in the world of digital music creation. And if you’re already familiar with using computer software, then you’ll be amazed at what this combination has to offer! Read more about Bitwig 8-Track.



Bitwig 8-track Arrangement view
Bundle of 5 full Cherry audio plugins included.

FIVE (5) CHERRY AUDIO PLUGINS

No kidding! We are also including 5 Cherry Audio plugins with your purchase. Not 5 demo plugins but full versions that can be loaded in any DAW as well as Bitwig Studio 8-Track. The bundle contains:*

  • Mercury-6 , a model of the classic Jupiter 6 synth.
  • PS-20, inspired by the MS-20.
  • OctaveCat, a n approachable monophonic synth based on the original.
  • DeamSynth, with digital and analog style waveforms akin to products developed in the late 80's/early 90's.
  • Stardust 201, a classic tape echo with all the advantages of digital.

IMAGE GALLERY

FEATURES & SPECIFICATONS

IMPACT LX Mini

  • 25 velocity-sensitive mini keys

  • 4 velocity curves  (soft, default, hard 1, hard 2) + 3 fixed values

  • Joystick for pitch bend, 2 modulation controls (MIDI assignable)
  • Footswitch jack 1/8″ (adapter to 1/4″ included)

  • Octave up/down buttons with LED indicators

  • Transpose via Shift + Part 2 buttons
  • Part 2 LED buttons (assignable to momentary keyboard shift, transpose, layering MIDI notes and switching MIDI channels (includes Latch option)

  • 7 transport buttons for DAW integration or MIDI assignable

  • Shift button activates secondary level for a total of 14 accessible MIDI button functions (plus 3rd level for another 7 functions with Nektar DAW Integration)
  • 8 velocity-sensitive LED Pads (4 pad maps)
  • 8 pots (x2 via Page button, functionality changes according to mode)
  • Volume pot with LED settings indication (MIDI-assignable)
  • Nektar DAW integration support*
  • Nektar DAW Integration for Impact LX Mini currently supports:  Ableton Live, Bitwig, Cakewalk, Cubase, Digital Performer, FL Studio, Garageband, Logic, Nuendo, Reaper, Reason, Studio One. Includes template setup for Pro Tools.

SYSTEM REQUIREMENTS

    • USB class compliant (no driver needed) works with any DAW or MIDI music software for OS X, Windows and iOS (iOS requires optional Apple Camera Kit)

    • USB Power Requirement: 100 mA
    • LX Mini: Windows XP, Vista, 7, 8, 10 or higher.
      Mac OS X 10.5 or higher, Linux (Ubuntu).
    • Nektar DAW Integration: Windows 7/8/10 or higher. Mac OS 10.7 or higher.

DIMENSIONS & WEIGHT

    • 39 cm (L) x 18,5 cm (D) x 3,8 cm (H), 1 kgs

IN THE BOX

    • Impact LX Mini USB MIDI Controller keyboard

    • User Guide

    • Micro USB cable

    • 1/8″ male jack to 1/4″ female jack cable for footswitch socket
    • Bitwig License card*

(*= DAW integration software and Bitwig 8-Track download upon registration)
